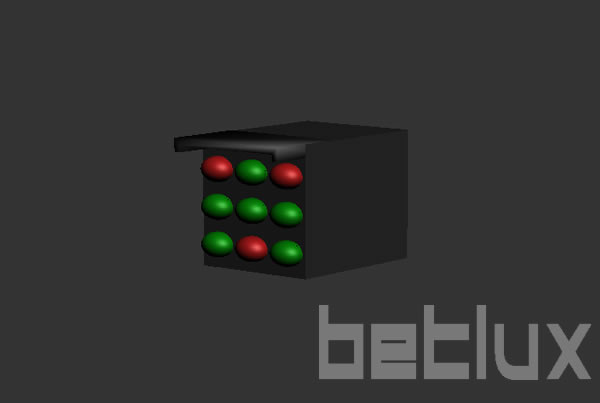

19.2mm led cluster (3 red 6 green, square packed)
BL-CS19AR3G6
square 19mm cluster supplier
| Brand | BETLUX |
| Part NO | BL-CS19AR3G6 |
| Dimension | 19.20*19.20*35.80 mm |
| Weight | 10.0000g |
| Package | 20pcs/bag |
| Datasheet |  |
Feature:
Description
19.2mm Lamp cluster (3 red 6 green, square packed)
19.2mm LED cluster
Features:
Shape: square
Width*height: 19.20mm*19.20mm
High visibility
Emitting Color: Red green
No of Built-in 5mm LED Lamps : Super Bright Red 3 Pcs, green 6 pc High Visibility
Waterproof Package with Hood Suitable
For Outdoor and Indoor Information Boards
Long Life
Low Current, power Savings
Low Maintenance
Different Color available
Solid State, high Vibration Resistant
Can Produce any Color in Visible Spectrum, including White Light
RoHs Compliance
Electrical-optical characteristics:

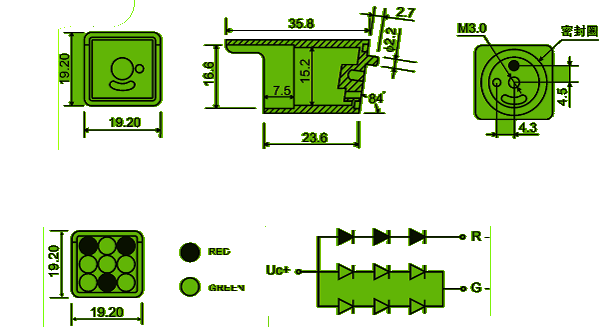

Package configuration & Internal circuit diagram
Tolerance is +-0.25(0.01") unless otherwise note
Specifications are subject to change without notice.
Absolute maximum ratings (Ta= 25?C)
Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)
| Characteristic | Symbol | Ultra Orang | Ultra Green | Ultra Blue | Unit |
| Spectral Line Half width | 17 | 30 | 30 | nm | |
| Pulse Forward Current | IFp | 150 | 150 | 150 | mA |
| DC Forward Current | IF | 30 | 30 | 30 | mA |
| Reverse Voltage | V R | 5 | 5 | 5 | V |
| Power Dissipature | PD | 65 | 75 | 75 | mW |
| Operating Temperature | Topr | -40 °C -80 °C | |||
| Storage Temperature | Tstg | -40 °C -85 °C | |||
| Lead Soldering Temperature | Max.260+5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ||||
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
