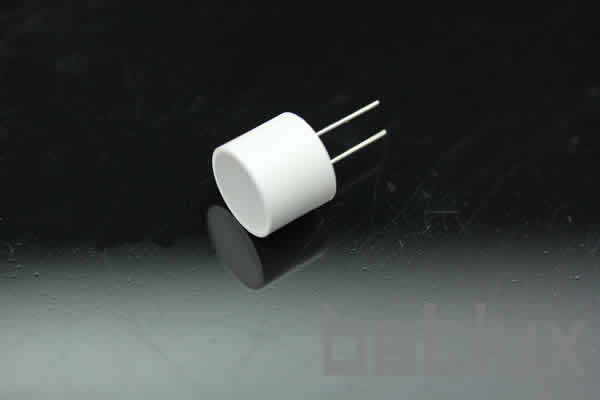

LED light bar | Circle LED | 10mm

LED light bar(circle ,1 bar,10.00mm)


LED light bar | Circle LED | 10mmLED light bar | Circle LED | 10mm
Part NO BL-AC1Z10
Dimension 10.00*10.00*8.00 mm
Weight 2.0000g
Package 150pcs/Bag
Datasheet pdf
Feature: Description

LED light bar(circle,10.00mm)
Lightbar LED
Display area shape: circle
Display area number: 1
Outer Diameter:10.00mm
Inner diameter:8.80mm
Uniform Light Emitting Area
Low Current Operation
Wide viewing Angle
Uniform Light Emitting Area
Easily Mounted on P.C. Boards
Flush Mountable
Excellent On/Off Contrast
Can be Used with Panels and Legend Mounts
Categorized for Luminous Intensity
Different Colors in One unit Available
Standard: Black Face , White Segment
RoHs Compliance

RoHs Compliance, Pb-free Anti-Static Attention

Electrical-optical characteristics:

Part No C.C.Part No C.A.colorwavelengthV typical(V)V max(V)Brightness(mcd)
BL-AC1Z10DSuper Bright Red6601.852.210
BL-AC1Z10SHigh Bright Red6601.852.25
BL-AC1Z10URUltra Bright Red6601.852.220
BL-AC1Z10UEHigh Bright Orange6302.12.58
BL-AC1Z10UYHigh Bright Yellow5902.12.58
BL-AC1Z10UGHigh Bright Green5742.22.58
BL-AC1Z10PGSuper Pure Green5253.04.212
BL-AC1Z10BSuper Bright Blue4703.04.210
BL-AC1Z10UBSuper Bright Blue4703.04.220

Package configuration & Internal circuit diagram

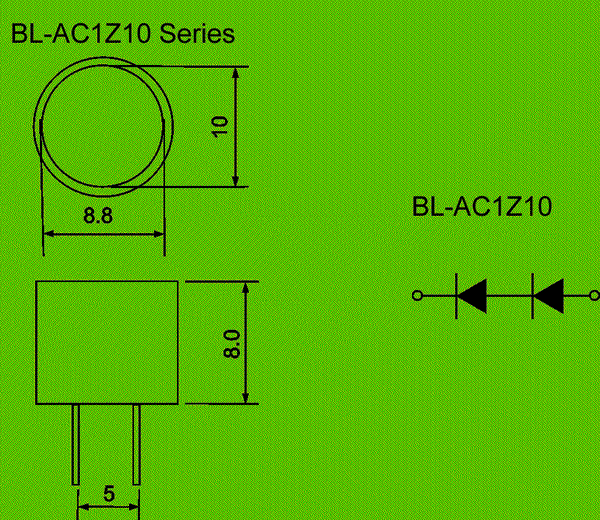

LED light bar | Circle LED | 10mm dimensional drawing

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01") unless otherwise note
Specifications are subject to change without notice.

Absolute maximum ratings (Ta= 25?C)

Reflector Surface color (1st number)/ Bar Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
light bar Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter   S D UR E Y G Unit
Forward Current IF   25 25 25 25 25 30 mA
Power Dissipation Pd   60 60 60 60 60 65 mW
Reverse Voltage VR   5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ)   150 150 150 150 150 150 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL   Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C

Absolute maximum ratings (Ta= 25°C)

Parameter UHR UE YO UY UG PG UB UW Unit
Forward Current IF 30 30 30 30 30 30 30 30 mA
Power Dissipation Pd 75 65 65 65 75 110 120 120 mW
Reverse Voltage VR 5 5 5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 100 100 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C

Partno description:
LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Light bar display is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX's Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LED light bar display may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety

2. Storage
The storage ambient for the LED bar display should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the light bar LED display be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Light bar display if necessary under room temperature
dry it immediately after that.

Any unsuitable stress applied to the epoxy may break bonding wires in LED light bargraph display
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

LED light bar display forming caution


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:

Wave Soldering Soldering Iron
Pre-Heat 100°C Max. Temperature 300°C Max.
Pre-Heat Time 60sec Max.
SolderWave 260°C Max. Soldering Time 3sec Max.(one time only)
Soldering Time 5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD (Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD damage:

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED's

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
