| LED diode >> SMD LED >> 1204 bi-color SMD LED
 | product | 1204 bi-color SMD LED |
| Part NO | BL-LS1204XX | |
| Dimension | 3.2*1.0*1.5mm | |
| kinds | LED diode -> SMD LED | |
| Datasheet |  |
Feature:
l 3.2mmx1.0mm SMD, 1.5mm THICKNESS.
l BI-color type
l Compatible with automatic placement equipment
l WIDE VIEWING ANGLE.
l IDEAL FOR BACKLIGHT AND INDICATOR.
l PACKAGE:3KPCS/REEL.
RoHs Compliance
Applied for:
Super bight LED diodes Electrical-optical characteristics: (Ta=25³cC) (Test Condition: IF=20mA)

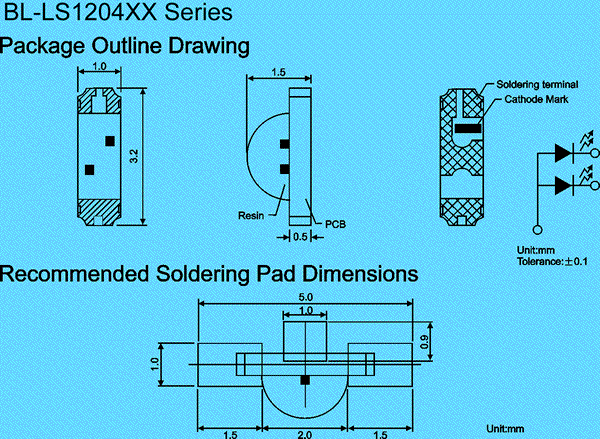

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is dS0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | E | UE | Y | G | UG | Unit |
| Forward Current I F | 25 | 30 | 25 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 65 | 60 | 65 | 75 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | mA |
| Operation Temperature T OPR | -40 to +80 | ³cC | ||||
| Storage Temperature T STG | -40 to +85 | ³cC | ||||
| Lead Soldering Temperature
T SOL |
Max.260dS 5³cC for 3 sec Max. (1.6mm from the base of the epoxy bulb) | ³cC | ||||
