| LED diode >> SMD LED >> 0603 SMD LED
 | product | 0603 SMD LED |
| Part NO | BL-LS0603 | |
| Dimension | 1.6*0.8*0.8mm | |
| kinds | LED diode -> SMD LED | |
| Datasheet |  |
Feature:
l 1.6mmx0.8mm SMD, 0.8mm THICKNESS.
l Mono-color type, Ultra brightness
l Compatible with automatic placement equipment
l WIDE VIEWING ANGLE.
l IDEAL FOR BACKLIGHT AND INDICATOR.
n PACKAGE:4KPCS/REEL.
n PB-Free
RoHs Compliance
Applied for:
Super bight LED diodes Electrical-optical characteristics: (Ta=25³cC) (Test Condition: IF=20mA)
Sepecification
| Part NO | color | wavelength | V typical | V max | Brightness | Degree |
| BL-LS0603UDR | Ultra Bright Red | 655 | 2.1 | 2.5 | 55 | 130 |
| BL-LS0603UHR | Ultra Bright Red | 645 | 2.1 | 2.6 | 80 | 130 |
| BL-LS0603UEC | High Bright Orange | 630 | 2.1 | 2.5 | 80 | 130 |
| BL-LS0603UHD | Ultra Amber | 618 | 2.1 | 2.6 | 110 | 130 |
| BL-LS0603UYO | Ultra Amber | 610 | 2.1 | 2.6 | 80 | 130 |
| BL-LS0603UYC | High Bright Yellow | 593 | 2.1 | 2.6 | 70 | 130 |
| BL-LS0603UGC | High Bright Green | 575 | 2.2 | 2.7 | 40 | 130 |
| BL-LS0603PGC | Super Pure Green | 525 | 3.0 | 4.2 | 100 | 130 |
| BL-LS0603UBC | Super Bright Blue | 470 | 3.0 | 4.2 | 30 | 130 |
| BL-LS0603DNB | Super Bright Blue | 470 | 3.0 | 4.2 | 33 | 130 |
| BL-LS0603UWC | White | / | 3.0 | 4.2 | 200 | 130 |

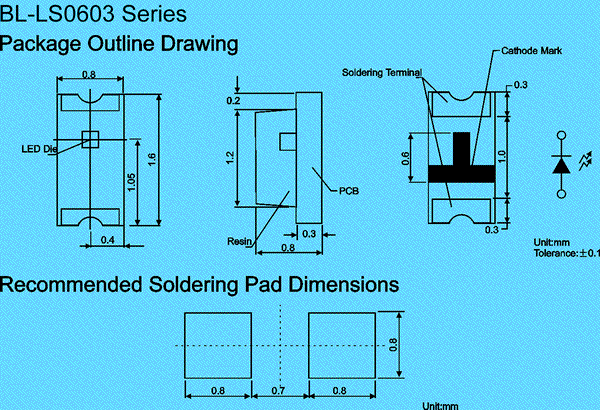

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is dS0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | ³cC | |||||||||||
| Storage Temperature T STG | -40 to +85 | ³cC | |||||||||||
| Lead Soldering Temperature T SOL | Max.260dS 5³cC for 3 sec Max. (1.6mm from the base of the epoxy bulb) | ³cC | |||||||||||
