Gerneral Information | Application note | ABSOLUTE MAXIMUM RATINGS | CHARACTERISTICS CURVES
TECHNICAL DATA
| ABSOLUTE MAXIMUM RATINGS (TA=25oC) |
IF |
Pd |
VR |
IPF |
TOPR |
TSTG |
TSOL |
| mA | mW | V | mA | oC | oC | oC | |
H |
25 | 60 | 5 | 150 | -40 to +80 | -40 to +85 | Max.2605 for 3 sec Max. (1.6mm from the base of the epoxy bulb) |
E |
25 | 60 | 5 | 150 | |||
Y |
25 | 60 | 5 | 150 | |||
G |
30 | 65 | 5 | 150 | |||
SR |
25 | 60 | 5 | 150 | |||
LR |
25 | 50 | 5 | 150 | |||
UR |
25 | 60 | 5 | 150 | |||
UE |
30 | 65 | 5 | 150 | |||
UY |
30 | 65 | 5 | 150 | |||
UG |
30 | 75 | 5 | 150 | |||
PG |
30 | 110 | 5 | 150 | |||
BG |
30 | 110 | 5 | 150 | |||
B |
30 | 120 | 5 | 100 | |||
UB |
30 | 120 | 5 | 100 | |||
UV |
30 | 120 | 5 | 100 | |||
W |
30 | 120 | 5 | 100 | |||
W |
30 | 120 | 5 | 100 |
Parameter
Forward Current IF
Power Dissipation Pd
Reverse Voltage VR
Peak Forward Current IPF (Duty 1/10 @1KHZ)
Operation Temperature TOPR
Storage Temperature TSTG
Lead Soldering Temperature TSOL

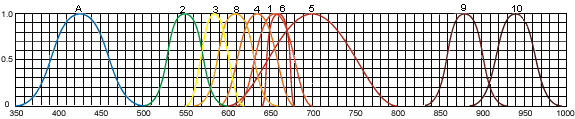

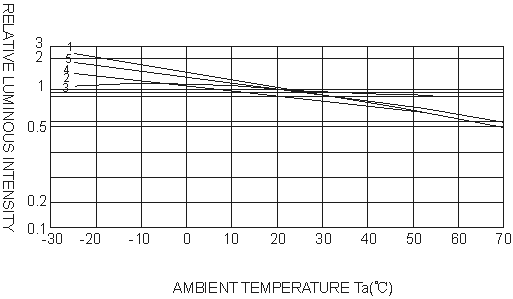

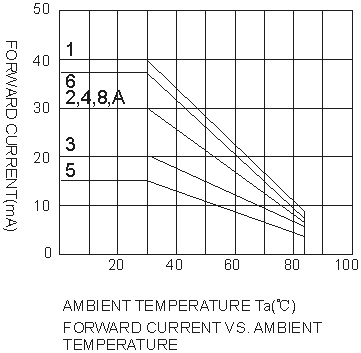

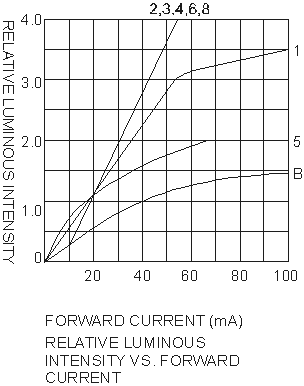

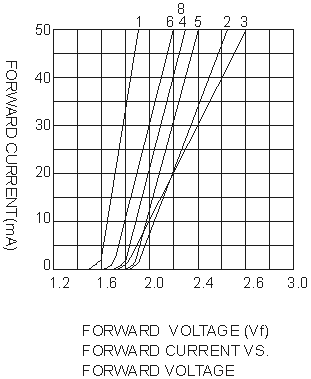

| Wavelength(nm) | RELATIVE INTENSITY Vs WAVELENGTH (P) |
| 1 655nm/Red 2 568nm/Yellow Green 3 585nm/Yellow 4 635nm/Orange 5 700nm/Bright Red |
6 660nm/super Red 8 610nm/Amper 9 GaAIAS 880nm 10 GaAS/GaAS & GaAIAS/GaAS 940nm A 430nm/Blue, 470nm/Blue |
