| LED diode >> SMD LED >> flat top, PLCC6 SMD LED lamp
 | Product: | flat top, PLCC6 SMD LED lamp |
| P/N: | BL-LS1923xxx | |
| Dimension: | ||
| kinds | LED diode -> SMD LED | |
| Datasheet: |  |
Feature:
Features:
? 5.5mmx5.0mm SMD, 1.8mm THICKNESS PLCC6 package
? RGB type, Ultra brightness
? Compatible with automatic placement equipment
? WIDE VIEWING ANGLE.
? IDEAL FOR BACKLIGHT AND INDICATOR.
? PACKAGE:500PCS/REEL
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25C) (Test Condition: IF=20mA)
Sepecification
| Part Number | Chip | Lens Type | Forward Voltage(VF) Unit:V | Luminous Intensity (Iv) Unit:mcd | Viewing Angle 2θ1/2(deg) | ||||
| Emitted Color | Material | l P (nm) | |||||||
| Typ | Max | Min. | Typ. | ||||||
BL-LS1923RGBC |
Red |
AlGaAs |
660 |
Water Clear |
2.10 |
2.50 |
110 |
180 |
100 |
Green |
GaP |
574 |
2.20 |
2.50 |
28 |
50 |
|||
Blue |
InGaN |
470 |
3.10 |
4.20 |
70 |
120 |
|||
BL-LS1923URUGUBC |
Ultra Red |
AlGaInP |
630 |
2.10 |
2.50 |
180 |
380 |
||
Ultra Pure Green |
InGaN |
525 |
3.10 |
4.20 |
200 |
400 |
|||
Ultra Blue |
InGaN |
470 |
3.10 |
4.20 |
110 |
220 |
|||

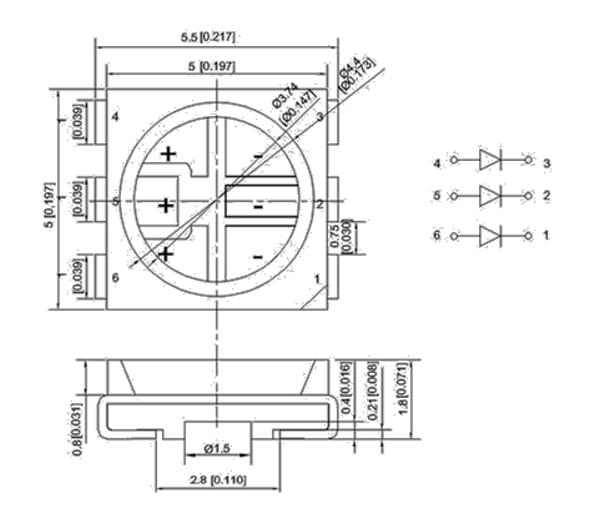

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is 0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | UE | PG | UB | Unit |
Forward Current I F |
30 | 30 | 30 | mA |
Power Dissipation P d |
65 | 110 | 120 | mW |
Reverse Voltage V R |
5 | 5 | 5 | V |
Peak Forward Current I PF (Duty 1/10 @1KHZ) |
150 | 150 | 100 | mA |
Operation Temperature T OPR |
-40 to +80 | C | ||
Storage Temperature T STG |
-40 to +85 | C | ||
| Lead Soldering Temperature T SOL | Max.260 5C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | C | ||
