 | Product: | flat top, PLCC2 3528 SMD led diode |
| P/N: | BL-LS1311 | |
| Dimension: | ||
| kinds | LED diode -> SMD LED | |
| Datasheet: |  |
Feature:
Features:
? 3.5mmx2.8mm SMD, 1.9mm THICKNESS PLCC2 package
? Mono-color type, Ultra brightness
? Compatible with automatic placement equipment
? WIDE VIEWING ANGLE.
? IDEAL FOR BACKLIGHT AND INDICATOR.
? PACKAGE:2KPCS/REEL.
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25C) (Test Condition: IF=20mA)
Sepecification
| Part No | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | Deg |
| BL-LS1311EGC | Orange | 640 | 2.1 | 2.6 | 80 | 120 |
| BL-LS1311UEC | Ultra Orange | 630 | 2.1 | 2.5 | 350 | 120 |
| BL-LS1311UYO | Ultra Amber | 610 | 2.1 | 2.6 | 160 | 120 |
| BL-LS1311UYC | Ultra Yellow | 593 | 2.1 | 2.6 | 400 | 120 |
| BL-LS1311UGC | Ultra Green | 575 | 2.2 | 2.7 | 50 | 120 |
| BL-LS1311EGC | Green | 568 | 2.3 | 2.7 | 50 | 120 |
| BL-LS1311PGC | Ultra Pure Green | 525 | 3.0 | 4.2 | 500 | 120 |
| BL-LS1311UBC | Ultra Blue | 470 | 3.0 | 4.2 | 200 | 120 |
| BL-LS1311UWC | Ultra White | / | 3.0 | 4.2 | 500 | 120 |

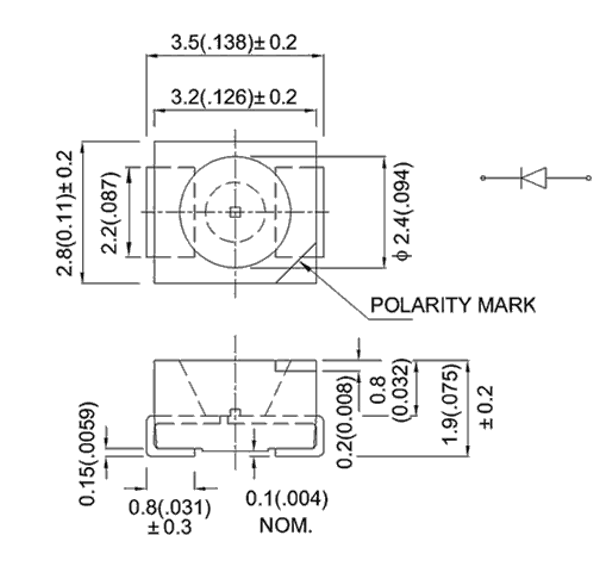

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is 0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | C | |||||||||||
| Storage Temperature T STG | -40 to +85 | C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260 5C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | C | |||||||||||
