| LED BAR >> LIGHT BAR >> LED light bar(rectangular ,12 bars)
 | Product: | LED light bar(rectangular ,12 bars) |
| P/N: | BL-AR12Z3010 | |
| Dimension: | Reflector length: 30 Reflector width: 10 | |
| kinds | LED BAR -> LIGHT BAR | |
| Datasheet: |  |
Feature:
LED light bar(rectangular,12 bars)
Lightbar LED
Features:
Display area shape: rectangular
Display area number: 12
Reflector length:30.40mm
Reflector width:10.10mm
Uniform Light Emitting Area
Low Current Operation
Wide viewing Angle
Uniform Light Emitting Area
Easily Mounted on P.C. Boards
Flush Mountable
Excellent On/Off Contrast
Can be Used with Panels and Legend Mounts
Categorized for Luminous Intensity
Different Colors in One unit Available
Standard: Black Face , White Segment
RoHs Compliance
Super bight LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Sepecification
| Part No | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | Deg |
| BL-AR12Z3010H | Red | 700 | 2.25 | 2.6 | 1.8 | |
| BL-AR12Z3010D | Super Red | 660 | 1.85 | 2.2 | 30 | |
| BL-AR12Z3010S | Hi Red | 660 | 1.85 | 2.2 | 18 | |
| BL-AR12Z3010UR | Ultra Red | 660 | 1.85 | 2.2 | 45 | |
| BL-AR12Z3010E | Orange | 635 | 2.1 | 2.5 | 10 | |
| BL-AR12Z3010UE | Ultra Orange | 630 | 2.1 | 2.5 | 18 | |
| BL-AR12Z3010UY | Ultra Yellow | 590 | 2.1 | 2.5 | 18 | |
| BL-AR12Z3010Y | Yellow | 585 | 2.1 | 2.5 | 10 | |
| BL-AR12Z3010UG | Ultra Green | 574 | 2.2 | 2.5 | 18 | |
| BL-AR12Z3010G | Green | 570 | 2.2 | 2.5 | 10 | |
| BL-AR12Z3010PG | Ultra Pure Green | 525 | 3.0 | 4.2 | 22 | |
| BL-AR12Z3010UB | ultra Blue | 470 | 3.0 | 4.2 | 31.5 | |
| BL-AR12Z3010B | ultra Blue | 470 | 3.0 | 4.2 | 24 |

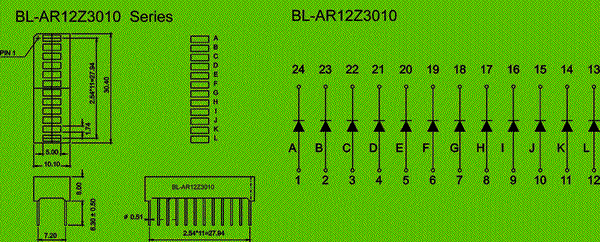

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Bar Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| light bar Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
