| LED BAR >> LIGHT BAR >> LED light bar(rectangular ,12 bars)
 | Product: | LED light bar(rectangular ,12 bars) |
| P/N: | BL-AR12B3010xx | |
| Dimension: | Reflector length: 30 Reflector width: 10 | |
| kinds | LED BAR -> LIGHT BAR | |
| Datasheet: |  |
Feature:
LED light bar(rectangular,12 bars)
Lightbar LED
Features:
Display area shape: rectangular
Display area number: 12
Reflector length:30.40mm
Reflector width:10.10mm
Uniform Light Emitting Area
Low Current Operation
Wide viewing Angle
Uniform Light Emitting Area
Easily Mounted on P.C. Boards
Flush Mountable
Excellent On/Off Contrast
Can be Used with Panels and Legend Mounts
Categorized for Luminous Intensity
Different Colors in One unit Available
Standard: Black Face , White Segment
RoHs Compliance
Super bight LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
| Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||
| Emitted Color | Material | l P (nm) | ||||
| Typ | Max | |||||
BL-AR12Z3010SG--XX |
Super Red |
AlGaInP |
660 |
2.10 |
2.50 |
10 |
Green |
GaP/GaP |
570 |
2.20 |
2.50 |
10 |
|
BL-AR12Z3010EG-XX |
Orange |
GaAsP/GaP |
635 |
2.10 |
2.50 |
10 |
Green |
GaP/GaP |
570 |
2.20 |
2.50 |
10 |
|
BL-AR12Z3010DUG-XX |
Ultra Red |
AlGaInP |
660 |
2.10 |
2.50 |
30 |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
18 |
|
BL-AR12Z3010UEUG-XX |
Ultra Orange |
AlGaInP |
630 |
2.10 |
2.50 |
18 |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
18 |
|

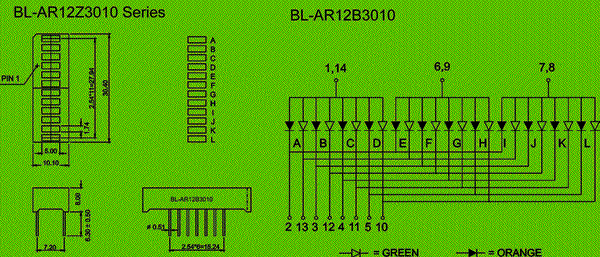

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Bar Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| light bar Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
| Parameter | S | G | E | D | UG | UE | PG | Unit | |
| Forward Current I F | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA | |
| Power Dissipation P d | 75 | 80 | 80 | 75 | 75 | 65 | 110 | mW | |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature T OPR | -40 to +80 | ° C | |||||||
| Storage Temperature T STG | -40 to +85 | ° C | |||||||
| Lead Soldering Temperature T SOL | Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ° C | |||||||
