 | Product: | LED light bar (circle,20mm big LED) |
| P/N: | BL-AC1Z20 | |
| Dimension: | 20mm Diameter | |
| kinds | LED BAR -> LIGHT BAR | |
| Datasheet: |  |
Feature:
? 20mm Circle single color LED light bar display series
Super bight LED Electrical-optical characteristics: (Ta=25C) (Test Condition: IF=20mA)
| Part No | Chip | VF Unit:V | Iv TYP.(mcd) |
|||
| Emitted Color | Material | l P (nm) | ||||
| Typ | Max | |||||
BL-AC1Z20S-XX |
Hi Red |
GaAlAs/GaAs,SH |
660 |
1.85 |
2.20 |
12 |
BL-AC1Z20D-XX |
Super Red |
GaAlAs/GaAs,DH |
660 |
1.85 |
2.20 |
18 |
BL-AC1Z20UR-XX |
Ultra Red |
GaAlAs/GaAs,DDH |
660 |
1.85 |
2.20 |
30 |
BL-AC1Z20E-XX |
Orange |
GaAsP/GaP |
635 |
2.10 |
2.50 |
10 |
BL-AC1Z20Y-XX |
Yellow |
GaAsP/GaP |
585 |
2.10 |
2.50 |
10 |
BL-AC1Z 20G-XX |
Green |
GaP/GaP |
570 |
2.20 |
2.50 |
10 |
BL-AC1Z20UHR -XX |
Ultra Red |
AlGaInP |
645 |
2.10 |
2.50 |
30 |
BL-AC1Z20UE-XX |
Ultra Orange |
AlGaInP |
630 |
2.10 |
2.50 |
15 |
BL-AC1Z20YO-XX |
Ultra Amber |
AlGaInP |
619 |
2.10 |
2.50 |
15 |
BL-AC1Z20UY-XX |
Ultra Yellow |
AlGaInP |
590 |
2.10 |
2.50 |
15 |
BL-AC1Z20UG-XX |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
15 |
BL-AC1Z20PG-XX |
Ultra Pure Green |
InGaN |
525 |
3.80 |
4.50 |
20 |
BL-AC1Z20UB-XX |
Ultra Blue |
InGaN |
470 |
2.70 |
4.20 |
30 |
BL-AC1Z20UW-XX |
Ultra White |
InGaN |
/ |
2.70 |
4.20 |
40 |

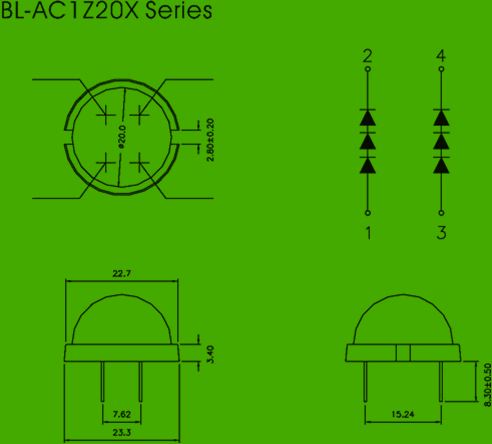

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is 0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Bar Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| light bar Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | C | ||||||
| Storage Temperature TSTG | -40 to +85 | C | ||||||
| Lead Soldering Temperature TSOL | Max.260 5C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | C | ||||||
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | C | |||||||
| Storage Temperature TSTG | -40 to +85 | C | |||||||
| Lead Soldering Temperature TSOL | Max.260 5C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | C | |||||||
