| LED diode >> MULTI-COLOR LED >> 5mm round RGB color, Blinking
 | Product: | 5mm round RGB color, Blinking |
| P/N: | BL-L516 | |
| Dimension: | 5.0*7.6mm | |
| kinds | LED diode -> MULTI-COLOR LED | |
| Datasheet: |  |
Feature:
;5.0mm Round Type, RGB Full Color LED Lamps, with Blinking
;Diffused and Water clear lens are available.
;Popular T-1 diameter package.
;IC compatible /Low current capability.
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Sepecification
| Part No | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | Deg |
| BL-L516RGBC-B | Ultra Orange | 630 | 2.1 | 2.5 | 2000 | 20 |
| Ultra Pure Green | 525 | 3.0 | 4.2 | 5000 | 20 | |
| Blue | 430 | 3.0 | 4.2 | 2000 | 20 | |
| BL-L516RGBW-B | Ultra Orange | 630 | 2.1 | 2.5 | 500 | 30 |
| Ultra Pure Green | 525 | 3.0 | 4.2 | 600 | 30 | |
| Blue | 430 | 3.0 | 4.2 | 300 | 30 |

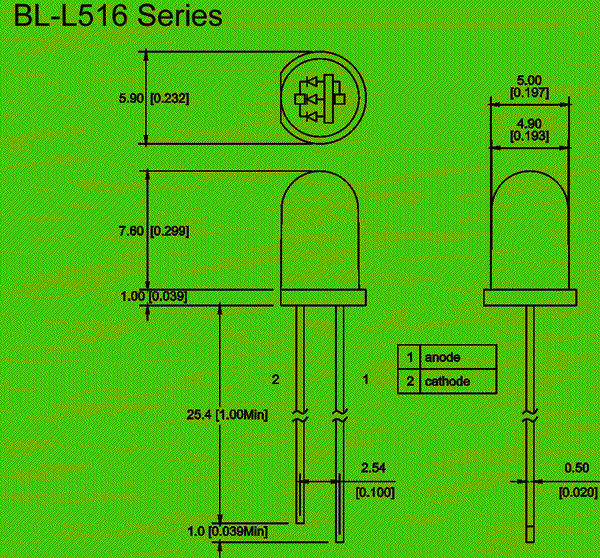

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | UE | PG | UB | Unit |
Forward Current I F |
30 | 30 | 30 | mA |
Power Dissipation P d |
65 | 110 | 120 | mW |
Reverse Voltage V R |
5 | 5 | 5 | V |
Peak Forward Current I PF (Duty 1/10 @1KHZ) |
150 | 150 | 100 | mA |
Operation Temperature T OPR |
-40 to +80 | °C | ||
Storage Temperature T STG |
-40 to +85 | °C | ||
| Lead Soldering Temperature T SOL | Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | ||
