 | Product: | 5mm Bi-color LED diode, 3 pin |
| P/N: | BL-L519 | |
| Dimension: | 5.0*7.6mm | |
| kinds | LED diode -> MULTI-COLOR LED | |
| Datasheet: |  |
Feature:
l 5.0mm Round Type BI-COLOR LED Lamps, with 3 leads
l Choice of various viewing angles.
l Diffused, Transparent and Water clear lens are available.
l IC compatible /Low current capability.
l Common anode or common cathode
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Sepecification
| Part No | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | Deg |
| BL-L519EGW | Orange | 635 | 2.1 | 2.5 | 20 | 60 |
| Green | 570 | 2.2 | 2.5 | 15 | 60 | |
| BL-L519YGW | Yellow | 585 | 2.1 | 2.5 | 15 | 60 |
| Green | 570 | 2.2 | 2.5 | 15 | 60 | |
| BL-L519UEUGW | Ultra orange | 630 | 2.1 | 2.5 | 190 | 60 |
| Ultra Green | 574 | 2.2 | 2.5 | 130 | 60 |

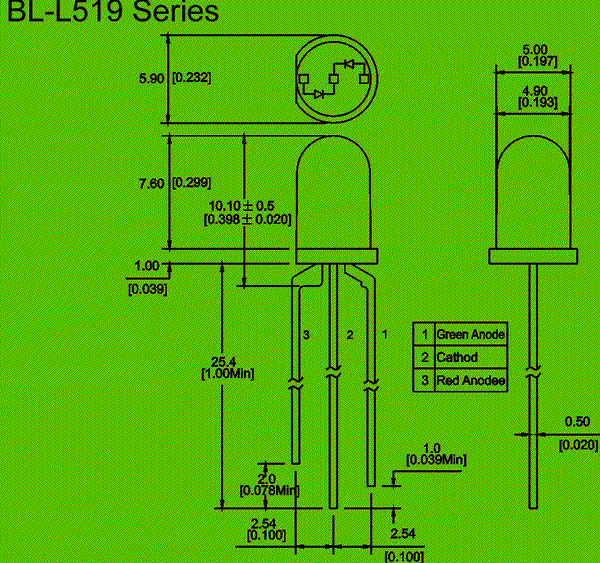

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | E | UE | Y | G | UG | Unit |
| Forward Current I F | 25 | 30 | 25 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 65 | 60 | 65 | 75 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | ||||
| Storage Temperature T STG | -40 to +85 | °C | ||||
| Lead Soldering Temperature
T SOL |
Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | ||||
