| LED diode >> PHOTO DIODES >> 512(5mm) Silicon Photo Diodes
 | Product: | 512(5mm) Silicon Photo Diodes |
| P/N: | BL-L512PD | |
| Dimension: | 5.0*7.6mm | |
| kinds | LED diode -> PHOTO DIODES | |
| Datasheet: |  |
Feature:
;5.1*3.0*7.4mm SILICON PHOTO DIODES
;Choice of various viewing angles.
;Diffused and Water clear lens are available.
;Fast response time.
;High photo sensitivity.
;Small junction capacitance.
;The epoxy package itself is an IR filter, spectrally
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
| Part Number | Chip | Lens Type | Forward Voltage(VF) Unit:V | Luminous Intensity (Iv) Unit:mcd | Viewing Angle 2θ1/2(deg) | ||||
| Emitted Color | Material | l P (nm) | |||||||
| Typ | Max | Min. | Typ. | ||||||
BL-L512SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
1.85 |
2.20 |
50 |
250 |
20 |
BL-L512LRC |
Super Red |
AlGaAs,DH |
660 |
1.85 |
2.20 |
250 |
600 |
||
BL-L512URC |
Ultra Red |
AlGaAs,DDH |
660 |
1.95 |
2.20 |
600 |
1000 |
||
BL-L512UEC |
Ultra Orange |
AlGaInP |
630 |
2.10 |
2.50 |
800 |
2000 |
||
BL-L512UYC |
Ultra Yellow |
AlGaInP |
590 |
2.10 |
2.50 |
1000 |
2200 |
||
BL-L512UGC |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
300 |
700 |
||
BL-L512PGC |
Ultra Pure Green |
InGaN |
525 |
3.80 |
4.50 |
2000 |
5000 |
||
BL-L512BGC |
Ultra Bluish Green |
InGaN |
505 |
3.80 |
4.50 |
1800 |
4000 |
||
BL-L512BC |
Blue |
InGaN |
430 |
3.80 |
4.50 |
800 |
2000 |
||
BL-L512UBC |
Ultra Blue |
InGaN |
470 |
2.70 |
4.20 |
2000 |
5000 |
||
BL-L512VC |
UV |
InGaN |
405 |
3.80 |
4.50 |
80 |
150 |
||
BL-L512UWC |
Ultra White |
InGaN |
/ |
2.70 |
4.20 |
3000 |
10000 |
||
BL-L512SRD |
Hi Red |
AlGaAs,SH |
660 |
Diffused |
1.85 |
2.20 |
20 |
80 |
60 |
BL-L512LRD |
Super Red |
AlGaAs,DH |
660 |
1.85 |
2.20 |
50 |
120 |
||
BL-L512URD |
Ultra Red |
AlGaAs,DDH |
660 |
1.95 |
2.20 |
100 |
220 |
||
BL-L512UED |
Ultra Orange |
AlGaInP |
630 |
2.10 |
2.50 |
120 |
300 |
||
BL-L512UYD |
Ultra Yellow |
AlGaInP |
590 |
2.10 |
2.50 |
120 |
320 |
||
BL-L512UGD |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
45 |
100 |
||
BL-L512PGD |
Ultra Pure Green |
InGaN |
525 |
3.80 |
4.50 |
400 |
900 |
||
BL-L512BGD |
Ultra Bluish Green |
InGaN |
505 |
3.80 |
4.50 |
300 |
800 |
||
BL-L512UBD |
Ultra Blue |
InGaN |
470 |
2.70 |
4.20 |
400 |
900 |
||
BL-L512UWW |
Ultra White |
InGaN |
/ |
2.70 |
4.20 |
1000 |
2000 |
||

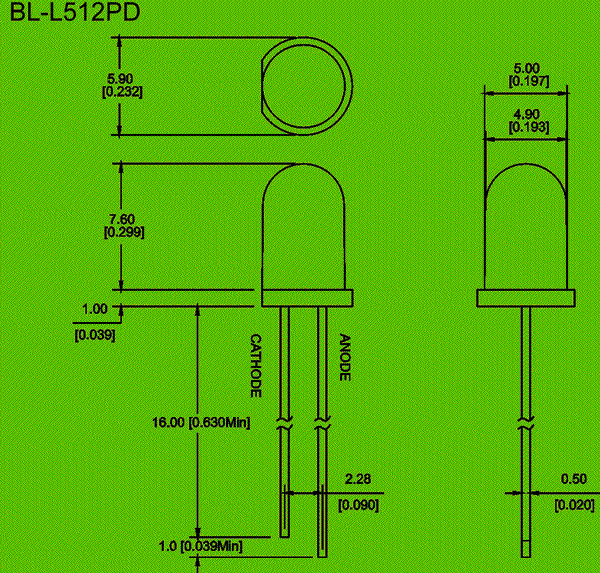

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
