DOT MATRIX LED >> 5x8 bi-color >> 4.6 inch height 5x8 LED dot matrix, bi-color Email contact

product image - Dot matrix LED 5x8 10mm 4.6 inch bicolor-4.6 inch height 5x8 LED dot matrix, bi-color
Product:4.6 inch height 5x8 LED dot matrix, bi-color
P/N:BL-M46A581xx,BL-M46B581xx
Dimension: 76.00x121.50mm
kindsDOT MATRIX LED -> 5x8 bi-color
Datasheet:PDF datasheet of BL-M46A581xx,BL-M46B581xx-Dot matrix LED 5x8 10mm 4.6 inch bicolor

RoHs Compliance, Pb-free Anti-Static Attention
Feature:

4.6 inch height 5x8 LED dot matrix
4.6 inch Matrix Height(116.68mm)
Dot size 10.00mm, circle dot
Column: 5 Row: 8
Widthxheight: 76.00121.50mm
Bi-color selected
Low current operation
High contrast and light output
Compatible with ASCII and EBCDIC code
Stackable horizontally
Column cathode and column anode available
Easy mounting on P.C.Boards or Sockets
Categorized for luminous intensity
Technically rugged
Standard: Gary surface and White dot
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Chip VF Unit:V Iv TYP.(mcd)
Row Cathode Column Anode Row Anode Column Cathode Emitted Color Material l P (nm)

Typ

Max

BL-M46A581 SG-XX

BL-M46B581 SG-XX

Super Red

AlGaInP

660

2.10

2.50

155

Green

GaP/GaP

570

2.20

2.50

140

BL-M46A581 EG-XX

BL-M46B581 EG-XX

Orange

GaAsP/GaP

635

2.10

2.50

120

Green

GaP/GaP

570

2.20

2.50

140

BL-M46A581 DUG-XX

BL-M46B581 DUG-XX

Ultra Red

AlGaInP

660

2.10

2.50

180

Ultra Green

AlGaInP

574

2.20

2.50

200

BL-M46A581 UEUG-XX

BL-M46B581 UEUG-XX

Ultra Orange

AlGaInP

630

2.10

2.50

170

Ultra Green

AlGaInP

574

2.20

2.50

200

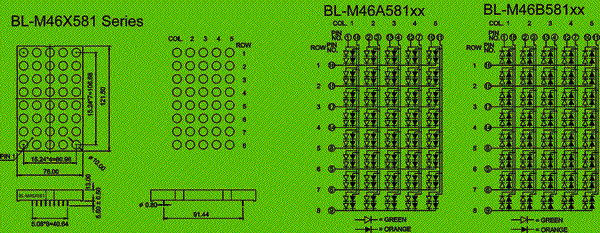

Product Dimension & Internal circuit diagram
Dot matrix LED 5x8 10mm 4.6 inch bicolor Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Dot Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 ° C
Storage Temperature T STG -40 to +85 ° C
Lead Soldering Temperature T SOL   Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) ° C
