Product:3mm Bi-color LED diode, 3 pin
P/N:BL-L315
Dimension: 3.0*4.5mm
kindsLED diode -> MULTI-COLOR LED
Datasheet:PDF datasheet of BL-L315-bicolor LED | 3mm LED | 3 pin

RoHs Compliance, Pb-free Anti-Static Attention


Feature:

;3.0mm Round Type BI-COLOR LED Lamps, with 3 leads
;Choice of various viewing angles.
;Diffused, Transparent and Water clear lens are available.
;IC compatible /Low current capability.
;common anode or common cathode
RoHs Compliance

Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Sepecification

Part No Color Wave length (V) typ (V) Max Bright (mcd) Deg
BL-L315EGW Orange 635 2.1 2.5 15 60
BL-L315EGW Green 570 2.2 2.5 10 60
BL-L315YGW Yellow 585 2.1 2.5 10 60
BL-L315YGW Green 570 2.2 2.5 10 60
BL-L315UEUGW ultra orange 630 2.1 2.5 180 60
BL-L315UEUGW Ultra Green 574 2.2 2.5 120 60

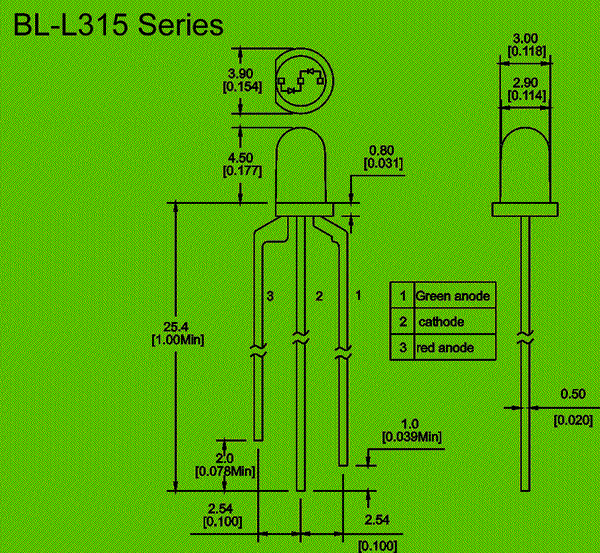

Package configuration & Internal circuit diagram
bicolor LED | 3mm LED | 3 pin Package diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.

Lens Color:

Code D T C W E
Meaning color Diffused Color Tinted Water Clear Water Diffused Orange diffused
Absolute maximum ratings (Ta=25°C)
Parameter E UE Y G UG Unit
Forward Current I F 25 30 25 30 30 mA
Power Dissipation P d 60 65 60 65 75 mW
Reverse Voltage V R 5 5 5 5 5 V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 mA
Operation Temperature T OPR -40 to +80 °C
Storage Temperature T STG -40 to +85 °C
Lead Soldering Temperature

T SOL

  Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) °C
