| LED diode >> Super Bright LED >> 3mm LED diode
 | Product: | 3mm LED diode |
| P/N: | BL-L334 | |
| Dimension: | 2.9*2.9mm | |
| kinds | LED diode -> Super Bright LED | |
| Datasheet: |  |
Feature:
;3.0mm Cylindrical, Inverted Cone LED lamp
;Choice of various viewing angles.
;Diffused, Transparent and Water clear lens are available.
;IC compatible /Low current capability.
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Sepecification
| Part No | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | Deg |
| BL-L334LRC | Super Red | 660 | 1.85 | 2.2 | 120 | 110 |
| BL-L334SRC | Hi Red | 660 | 1.85 | 2.2 | 80 | 110 |
| BL-L334URC | Ultra Red | 660 | 1.95 | 2.2 | 300 | 110 |
| BL-L334UEC | Ultra Orange | 630 | 2.1 | 2.5 | 400 | 110 |
| BL-L334UYC | Ultra Yellow | 590 | 2.1 | 2.5 | 400 | 110 |
| BL-L334UGC | Ultra Green | 574 | 2.2 | 2.5 | 100 | 110 |
| BL-L334PGC | Ultra Pure Green | 525 | 3.0 | 4.2 | 1000 | 110 |
| BL-L334BGC | Ultra Bluish Green | 505 | 3.0 | 4.2 | 800 | 110 |
| BL-L334UBC | Ultra Blue | 470 | 2.7 | 4.2 | 1000 | 110 |
| BL-L334BC | Blue | 430 | 3.0 | 4.2 | 800 | 110 |
| BL-L334VC | UV | 405 | 3.0 | 4.2 | 100 | 110 |
| BL-L334UWC | Ultra White | / | 2.7 | 4.2 | 1200 | 110 |

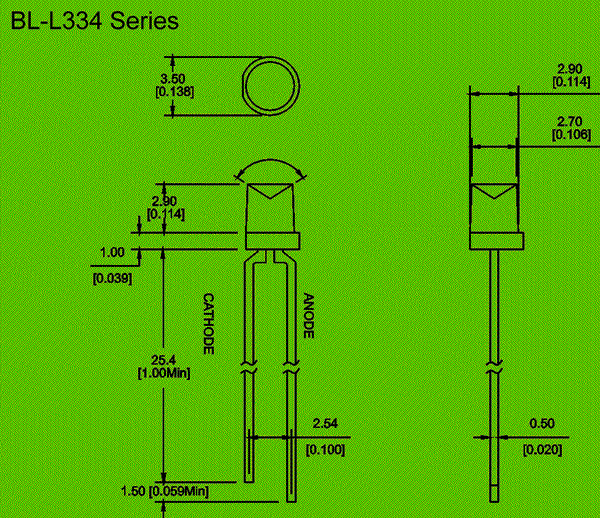

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
