| LED CLUSTER >> LED CLUSTER >> 28mm led cluster (3 red 5 green 1 blue, square packed)
 | Product: | 28mm led cluster (3 red 5 green 1 blue, square packed) |
| P/N: | BL-CS28AR3G5B1 | |
| Dimension: | 28.00mm*28.00mm | |
| kinds | LED CLUSTER -> LED CLUSTER | |
| Datasheet: |  |
Feature:
28mm Lamp cluster (3 red 5 green 1 blue, square packed)
28mm LED cluster
Features:
Shape: square
Width*height: 28.00mm*28.00mm
High visibility
Emitting Color: Red green blue
No of Built-in 5mm LED Lamps : Red 3 Pcs, green 5 pcs, blue 1pcs High Visibility
Waterproof Package with Hood Suitable
For Outdoor and Indoor Information Boards
Long Life
Low Current, power Savings
Low Maintenance
Different Color available
Solid State, high Vibration Resistant
Can Produce any Color in Visible Spectrum, including White Light
RoHs Compliance
Color Code & Chip characteristics: (Test Condition: IF=20mA)
Part No. |
Built-in Lamp Package |
Built-in Lamp Part No. BL- |
Chip |
Lens Appearance |
Electro-optical Data(At 20mA) |
Viewing Angle 2θ1/2 (deg) |
|||
Material/ Emitted Color |
Peak Wave Length λp (nm) |
Vf (V) |
Iv (mcd) |
||||||
Typ |
Max |
Typ |
|||||||
BL-CS28AR3G5B1 |
4x5x7mm 1.0" Lead Oval |
L563UEC |
AlGaInP/ Ultra Orange |
630 |
Water clear |
2.10 |
2.50 |
750 |
X-X 45 Y-Y 25 |
L563UGC |
AlGaInP/ Ultra Green |
574 |
Water clear |
2.20 |
2.50 |
600 |
|||
L563UBC |
GaN/SiC Blue |
430 |
Water clear |
3.10 |
4.20 |
800 |
|||

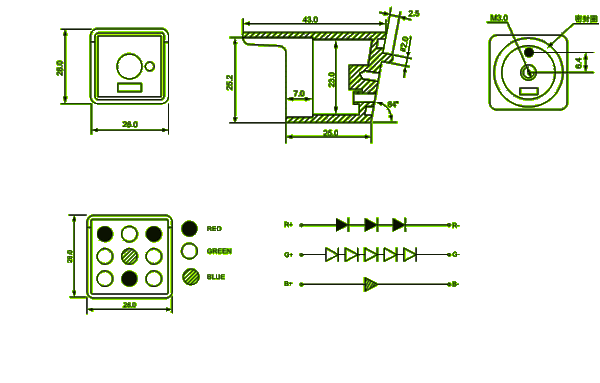

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)
| Characteristic | Symbol | Ultra Orang | Ultra Green | Ultra Blue | Unit |
| Spectral Line Half width | ?λ | 17 | 30 | 30 | nm |
| Pulse Forward Current | IFp | 150 | 150 | 150 | mA |
| DC Forward Current | IF | 30 | 30 | 30 | mA |
| Reverse Voltage | V R | 5 | 5 | 5 | V |
| Power Dissipature | PD | 65 | 75 | 75 | mW |
| Operating Temperature | Topr | -40 °C -80 °C | |||
| Storage Temperature | Tstg | -40 °C -85 °C | |||
| Lead Soldering Temperature | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ||||
