Product:26mm led cluster (6 red 8 green , round packed)
P/N:BL-CR26AR6G8
Dimension: Diameter: 26.00mm
kindsLED CLUSTER -> LED CLUSTER
Datasheet:PDF datasheet of BL-CR26AR6G8-26mm led cluster | LED specification

RoHs Compliance, Pb-free Anti-Static Attention


Feature:

26mm Lamp cluster (6 red 8 green, round packed)
26mm LED cluster
Features:
Shape: round
Diameter: 26.00mm
High visibility
Emitting Color: Red green
No of Built-in 5mm LED Lamps : Super Bright Red 6pcs, green 8pcs
Waterproof Packa High Visibility
Waterproof Package with Hood Suitable
For Outdoor and Indoor Information Boards
Long Life
Low Current, power Savings
Low Maintenance
Different Color available
Solid State, high Vibration Resistant
Can Produce any Color in Visible Spectrum, including White Light
RoHs Compliance

Color Code & Chip characteristics: (Test Condition: IF=20mA)

Part No.

Built-in Lamp

Package

Built-in

Lamp

Part No.

BL-

Chip

Lens

Appearance

Electro-optical

Data(At 20mA)

Viewing

Angle

2θ1/2

(deg)

Material/

Emitted

Color

Peak

Wave

Length

λp

(nm)

Vf

(V)

Iv

(mcd)

Typ

Max

Typ

BL-CR26AR6G8

4x5x7mm

1.0"

Lead Oval

L563UEC

AlGaInP/

Ultra Orange

630

Water clear

2.10

2.50

750

X-X

45

Y-Y

25

L563UGC

AlGaInP/

Ultra Green

574

Water clear

2.20

2.50

600

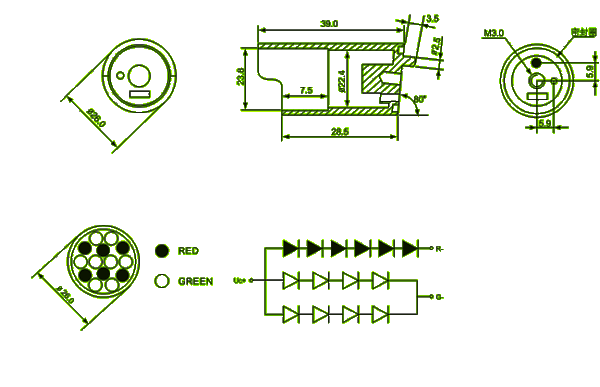

Package configuration & Internal circuit diagram
26mm led cluster | LED specification Package diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.

Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)

Characteristic Symbol Ultra Orang Ultra Green   Unit
Spectral Line Half width 17 30   nm
Pulse Forward Current IFp 150 150   mA
DC Forward Current IF 30 30   mA
Reverse Voltage V R 5 5   V
Power Dissipature PD 65 75   mW
Operating Temperature Topr -40 °C -80 °C
Storage Temperature Tstg -40 °C -85 °C
Lead Soldering Temperature   Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)
