Product:19.2mm led cluster (2 red 1 green 1 blue, square packed), RGB
P/N:BL-CS19AR2G1B1
Dimension: 19.20mm*19.20mm
kindsLED CLUSTER -> LED CLUSTER
Datasheet:PDF datasheet of BL-CS19AR2G1B1-LED cluster | tri color led

RoHs Compliance, Pb-free Anti-Static Attention


Feature:

19.2mm Lamp cluster (2 red 1green 1 blue, square packed)
19.2mm LED cluster
Features:
Shape: square
Width*height: 19.20mm*19.20mm
High visibility
Emitting Color: Red green
No of Built-in 5mm LED Lamps : Red 2 Pcs, green 1 pcs, blue 1pcs High Visibility
Waterproof Package with Hood Suitable
For Outdoor and Indoor Information Boards
Long Life
Low Current, power Savings
Low Maintenance
Different Color available
Solid State, high Vibration Resistant
Can Produce any Color in Visible Spectrum, including White Light
RoHs Compliance

Color Code & Chip characteristics: (Test Condition: IF=20mA)

Part No.

Built-in Lamp

Package

Built-in

Lamp

Part No.

BL-

Chip

Lens

Appearance

Electro-optical

Data(At 20mA)

Viewing

Angle

2θ1/2

(deg)

Material/

Emitted

Color

Peak

Wave

Length

λp

(nm)

Vf

(V)

Iv

(mcd)

Typ

Max

Typ

BL-CS19AR2G1B1

4x5x7mm

1.0"

Lead Oval

L563UEC

AlGaInP/

Ultra Orange

630

Water clear

2.10

2.50

750

X-X

45

Y-Y

25

L563UGC

AlGaInP/

Ultra Green

574

Water clear

2.20

2.50

600

L563UBC

GaN/SiC

Blue

430

Water clear

3.10

4.20

800

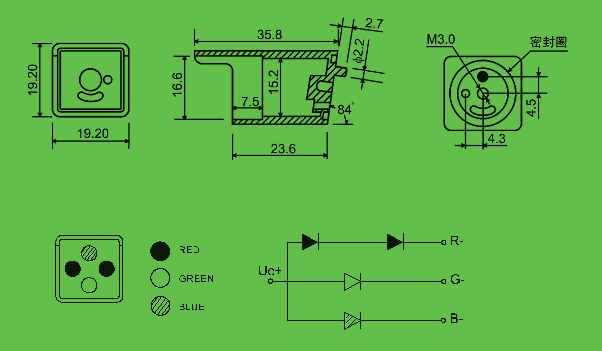

Package configuration & Internal circuit diagram
LED cluster | tri color led Package diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.

Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)

Characteristic Symbol Ultra Orang Ultra Green Ultra Blue Unit
Spectral Line Half width 17 30 30 nm
Pulse Forward Current IFp 150 150 150 mA
DC Forward Current IF 30 30 30 mA
Reverse Voltage V R 5 5 5 V
Power Dissipature PD 65 75 75 mW
Operating Temperature Topr -40 °C -80 °C
Storage Temperature Tstg -40 °C -85 °C
Lead Soldering Temperature   Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)
