Product:1.2 inch height 8x8 LED dot matrix, bi-color
P/N:BL-M12E881XX,BL-M12F881XX
Dimension: 32.00x32.00mm
kindsDOT MATRIX LED -> 8x8 bi-color
Datasheet:PDF datasheet of BL-M12E881XX,BL-M12F881XX-Dot Matrix LED - Dia 3mm 8x8 1.2" -LED products

RoHs Compliance, Pb-free Anti-Static Attention
Feature:

1.2 inch height 8x8 LED dot matrix
1.2 inch Matrix Height(31.00mm)
Dot size 3.00mm, circle dot
Column: 8 Row: 8
Widthxheight: 32.0032.00mm
Bi-color selected
Low current operation
High contrast and light output
Compatible with ASCII and EBCDIC code
Stackable horizontally
Column cathode and column anode available
Easy mounting on P.C.Boards or Sockets
Categorized for luminous intensity
Technically rugged
Standard: Gary surface and White dot
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Common Cathode Part No Common Anode Color Wave length (V) typ (V) Max Bright (mcd)
BL-M12E881SG BL-M12F881SG Super Red 660 2.1 2.5 200
    Green 570 2.2 2.5 195
BL-M12E881EG BL-M12F881EG Orange 635 2.1 2.5 190
    Green 570 2.2 2.5 195
BL-M12E881UEUG BL-M12F881UEUG Ultra Orange 630 2.1 2.5 235
Ultra Green 574 2.2 2.5 250
BL-M12E881DUG BL-M12F881DUG Ultra Red 660 2.1 2.5 320
    Ultra Green 574 2.2 2.5 250

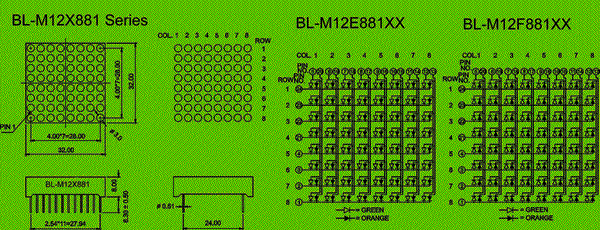

Product Dimension & Internal circuit diagram
Dot Matrix LED - Dia 3mm 8x8 1.2" -LED products Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Dot Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 ° C
Storage Temperature T STG -40 to +85 ° C
Lead Soldering Temperature T SOL   Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) ° C
