| SEVEN SEGMENT LED >> SINGLE DIGIT >> 1.00 inch single seven segment led display, bi-color
 | Product: | 1.00 inch single seven segment led display, bi-color |
| P/N: | BL-S100C-12xx,BL-S100D-12xx | |
| Dimension: | 24.00x34.00mm | |
| kinds | SEVEN SEGMENT LED -> SINGLE DIGIT | |
| Datasheet: |  |
Feature:
1.00 inch single Numeric LED display
1.00 inch digit height(25.40mm)
widthxheight: 24.0034.00mm
Single decimal point
Single or Double LED chip per segment
Bi-color selected;
Common anode or common cathode selected
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance
Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)
| Part No | Chip | VF Unit:V |
Iv TYP.(mcd) |
||||
Common Cathode |
Common Anode |
Emitted Color | Material | l P (nm) |
|||
Typ |
Max |
||||||
BL-S100C-12SG-XX |
BL-S100D-12SG-XX |
Super Red |
AlGaInP |
660 |
2.10 |
2.50 |
50 |
Green |
GaP/GaP |
570 |
2.20 |
2.50 |
65 |
||
BL-S100C-12EG-XX |
BL-S100D-12EG-XX |
Orange |
GaAsP/GaP |
635 |
2.10 |
2.50 |
65 |
Green |
GaP/GaP |
570 |
2.20 |
2.50 |
65 |
||
BL-S100C-12DUG-XX |
BL-S100D-12DUG-XX |
Ultra Red |
AlGaInP |
660 |
2.10 |
2.50 |
75 |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
75 |
||
BL-S100C-12UEUG-XX |
BL-S100D-12UEUG-XX |
Ultra Orange |
AlGaInP |
630 |
2.10 |
2.50 |
70 |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
75 |
||

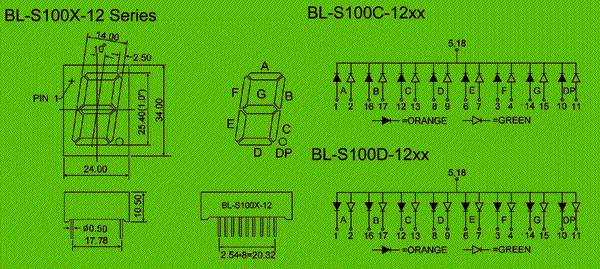

Package configuration & Internal circuit diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
| Parameter | S | G | E | D | UG | UE | PG | Unit | |
| Forward Current I F | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA | |
| Power Dissipation P d | 75 | 80 | 80 | 75 | 75 | 65 | 110 | mW | |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature T OPR | -40 to +80 | ° C | |||||||
| Storage Temperature T STG | -40 to +85 | ° C | |||||||
| Lead Soldering Temperature T SOL | Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ° C | |||||||
