| SEVEN SEGMENT LED >> SINGLE DIGIT >> 1.00 inch single seven segment led display, bi-color Email contact

product image - 7 Segment LED - single digit 1.0 inch -semiconductor optoelectronics-1.00 inch single seven segment led display, bi-color
Product:1.00 inch single seven segment led display, bi-color
P/N:BL-S100C-12,BL-S100D-12
Dimension: 24.00x34.00mm
kindsSEVEN SEGMENT LED -> SINGLE DIGIT
Datasheet:PDF datasheet of BL-S100C-12,BL-S100D-12-7 Segment LED - single digit 1.0 inch -semiconductor optoelectronics

RoHs Compliance, Pb-free Anti-Static Attention


Feature:

1.00 inch single Numeric LED display
1.00 inch digit height(25.40mm)
widthxheight: 24.0034.00mm
Single decimal point
Single or Double LED chip per segment
Bi-color selected;
Common anode or common cathode selected
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Common Cathode Part No Common Anode Color Wave length (V) typ (V) Max Bright (mcd)
BL-S100C-12D BL-S100D-12D Super Red 660 1.85 2.2 120
BL-S100C-12S BL-S100D-12S Hi Red 660 1.85 2.2 80
BL-S100C-12UR BL-S100D-12UR Ultra Red 660 1.85 2.2 130
BL-S100C-12E BL-S100D-12E Orange 635 2.1 2.5 92
BL-S100C-12UE BL-S100D-12UE Ultra Orange 630 2.1 2.5 95
BL-S100C-12UY BL-S100D-12UY Ultra Yellow 590 2.1 2.5 95
BL-S100C-12Y BL-S100D-12Y Yellow 585 2.1 2.5 92
BL-S100C-12UG BL-S100D-12UG Ultra Green 574 2.2 2.5 120
BL-S100C-12G BL-S100D-12G Green 570 2.2 2.5 92
BL-S100C-12PG BL-S100D-12PG Ultra Pure Green 525 3.0 4.2 150
BL-S100C-12UB BL-S100D-12UB ultra Blue 470 3.0 4.2 100
BL-S100C-12B BL-S100D-12B ultra Blue 470 3.0 4.2 85
BL-S100C-12W BL-S100D-12W Ultra White / 2.7 4.2 80

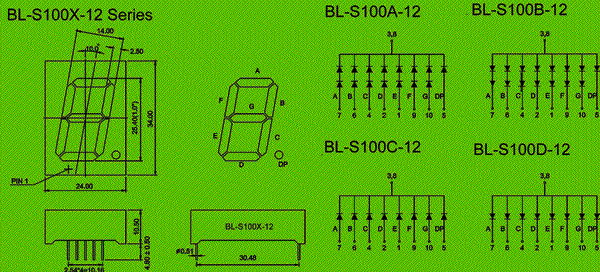

Package configuration & Internal circuit diagram
7 Segment LED - single digit 1.0 inch -semiconductor optoelectronics Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter   S D UR E Y G Unit
Forward Current IF   25 25 25 25 25 30 mA
Power Dissipation Pd   60 60 60 60 60 65 mW
Reverse Voltage VR   5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ)   150 150 150 150 150 150 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL   Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
Absolute maximum ratings (Ta= 25°C)
Parameter UHR UE YO UY UG PG UB UW Unit
Forward Current IF 30 30 30 30 30 30 30 30 mA
Power Dissipation Pd 75 65 65 65 75 110 120 120 mW
Reverse Voltage VR 5 5 5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 100 100 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
