SEVEN SEGMENT LED >> SINGLE DIGIT >> 0.80 inch single seven segment led display, bi-color Email contact

product image - LED 7 Segment Display Manufacturers & Suppliers | 0.8 inch bicolor-0.80 inch single seven segment led display, bi-color
Product:0.80 inch single seven segment led display, bi-color
P/N:BL-S80A-11XX,BL-S80B-11XX
Dimension: 20.00x27.70mm
kindsSEVEN SEGMENT LED -> SINGLE DIGIT
Datasheet:PDF datasheet of BL-S80A-11XX,BL-S80B-11XX-LED 7 Segment Display Manufacturers & Suppliers | 0.8 inch bicolor

RoHs Compliance, Pb-free Anti-Static Attention


Feature:

0.80 inch single Numeric LED display
0.80 inch digit height(20.40mm)
widthxheight: 20.0027.70mm
Double or single decimal point
Orange+Green Bi-color selected
Common anode or common cathode selected
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No

Chip



VF

Unit:V

Iv TYP.(mcd)

Common Cathode

Common Anode

Emitted Color

l P

(nm)

Typ

Max

BL-S 80A-11SG-XX

BL-S80B-11SG-XX

Super Red

660

2.10

2.50

50

Green

570

2.20

2.50

65

BL-S 80A-11EG-XX

BL-S80B-11EG-XX

Orange

635

2.10

2.50

65

Green

570

2.20

2.50

65

BL-S 80A-11DUG-XX

BL-S80B-11DUG-XX

Ultra Red

660

2.10

2.50

75

Ultra Green

574

2.20

2.50

75

BL-S 80A-11UEUG-XX

BL-S80B-11UEUG-XX

Ultra Orange

630

2.10

2.50

70

Ultra Green

574

2.20

2.50

75

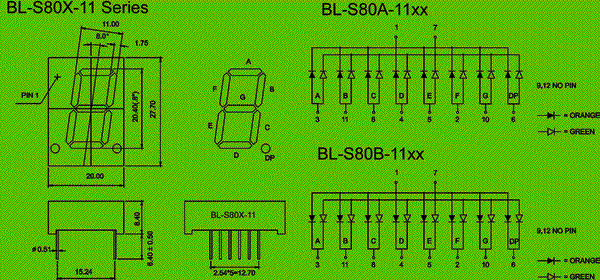

Package configuration & Internal circuit diagram
LED 7 Segment Display Manufacturers & Suppliers | 0.8 inch bicolor Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 ° C
Storage Temperature T STG -40 to +85 ° C
Lead Soldering Temperature T SOL   Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) ° C
