DOT MATRIX LED >> 8x8 bi-color >> 0.7 inch height 8x8 LED dot matrix, bi-color Email contact

product image - dot matrix LED | 8x8 display 0.7 inch height | bicolor LED-0.7 inch height 8x8 LED dot matrix, bi-color
Product:0.7 inch height 8x8 LED dot matrix, bi-color
P/N:BL-M07A881xx,BL-M07B881xx
Dimension: 20.20x20.20mm
kindsDOT MATRIX LED -> 8x8 bi-color
Datasheet:PDF datasheet of BL-M07A881xx,BL-M07B881xx-dot matrix LED | 8x8 display 0.7 inch height | bicolor LED

RoHs Compliance, Pb-free Anti-Static Attention
Feature:

0.7 inch height 8x8 LED dot matrix
0.7 inch Matrix Height(19.4mm)
Dot size 1.90mm, circle dot
Column: 8 Row: 8
Widthxheight: 20.2020.20mm
Low current operation
High contrast and light output
Compatible with ASCII and EBCDIC code
Stackable horizontally
Column cathode and column anode available
Easy mounting on P.C.Boards or Sockets
Categorized for luminous intensity
Technically rugged
Standard: Gary surface and White dot
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)

Part No

Chip



VF

Unit:V

Iv TYP.(mcd)

Row Cathode Column Anode

Row Anode

Column Cathode

Emitted Color

l P

(nm)

Typ

Max

BL-M 07A881SG-XX

BL-M07B881SG-XX

Super Red

660

2.10

2.50

200

Green

570

2.20

2.50

195

BL-M 07A881EG-XX

BL-M07B881EG-XX

Orange

635

2.10

2.50

190

Green

570

2.20

2.50

195

BL-M 07A881DUG-XX

BL-M07B881DUG-XX

Ultra Red

660

2.10

2.50

320

Ultra Green

574

2.20

2.50

250

BL-M 07A881UEUG-XX

BL-M07B881UEUG-XX

Ultra Orange

630

2.10

2.50

235

Ultra Green

574

2.20

2.50

250

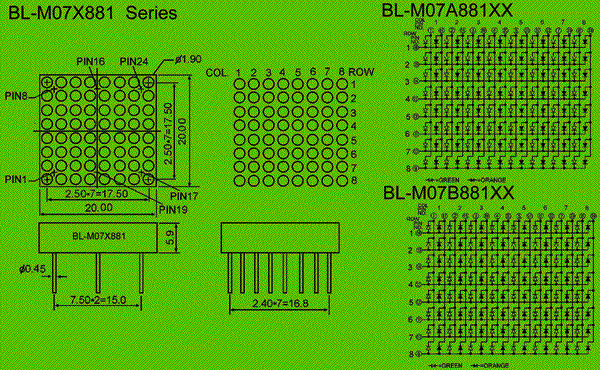

Product Dimension & Internal circuit diagram
dot matrix LED | 8x8 display 0.7 inch height | bicolor LED Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Dot Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 ° C
Storage Temperature T STG -40 to +85 ° C
Lead Soldering Temperature T SOL   Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) ° C
