Product:0.7 inch height 5x7 LED dot matrix, bi-color
P/N:BL-M07A571xx,BL-M07B571xx
Dimension: 12.70x17.80mm
kindsDOT MATRIX LED -> 5x7 bi-color
Datasheet:PDF datasheet of BL-M07A571xx,BL-M07B571xx-dot matrix led | 5x7 display 0.7 inch height | bicolor LED

RoHs Compliance, Pb-free Anti-Static Attention
Feature:

0.7 inch height 5x7 LED dot matrix
0.7 inch Matrix Height(19.7mm)
Dot size 1.90mm, circle dot
Column: 5 Row: 7
Widthxheight: 12.7017.80mm
Low current operation
High contrast and light output
Compatible with ASCII and EBCDIC code
Stackable horizontally
Column cathode and column anode available
Easy mounting on P.C.Boards or Sockets
Categorized for luminous intensity
Technically rugged
Standard: Gary surface and White dot
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Common Cathode Part No Common Anode Color Wave length (V) typ (V) Max Bright (mcd)
BL-M07A571SG BL-M07B571SG Super Red 660 2.1 2.5 100
    Green 570 2.2 2.5 95
BL-M07A571EG BL-M07B571EG Orange 635 2.1 2.5 90
    Green 570 2.2 2.5 95
BL-M07A571UEUG BL-M07B571UEUG Ultra Orange 630 2.1 2.5 100
Ultra Green 574 2.2 2.5 130
BL-M07A571DUG BL-M07B571DUG Ultra Red 660 2.1 2.5 110
    Ultra Green 574 2.2 2.5 130

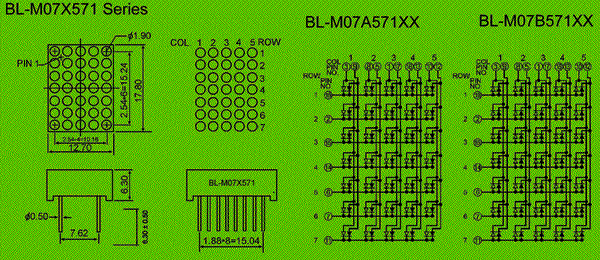

Product Dimension & Internal circuit diagram
dot matrix led | 5x7 display 0.7 inch height | bicolor LED Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Dot Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 ° C
Storage Temperature T STG -40 to +85 ° C
Lead Soldering Temperature T SOL   Max.260± 5 °C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) ° C
