| SEVEN SEGMENT LED >> SINGLE DIGIT >> 0.56 inch single seven segment led display (include sign) Email contact

product image - segment display | single digit | 0.56 inch-0.56 inch single seven segment led display (include sign)
Product:0.56 inch single seven segment led display (include sign)
P/N:BL-S56A-15,BL-S56B-15
Dimension: 12.55*17.7mm
kindsSEVEN SEGMENT LED -> SINGLE DIGIT
Datasheet:PDF datasheet of BL-S56A-15,BL-S56B-15-segment display | single digit | 0.56 inch

RoHs Compliance, Pb-free Anti-Static Attention


Feature:
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Common Cathode Part No Common Anode Color Wave length (V) typ (V) Max Bright (mcd)
BL-S56A-15H BL-S56B-15H Red 700 2.25 2.6 3
BL-S56A-15D BL-S56B-15D Super Red 660 1.85 2.2 45
BL-S56A-15S BL-S56B-15S Hi Red 660 1.85 2.2 30
BL-S56A-15UR BL-S56B-15UR Ultra Red 660 1.85 2.2 50
BL-S56A-15E BL-S56B-15E Orange 635 2.1 2.5 35
BL-S56A-15UE BL-S56B-15UE Ultra Orange 630 2.1 2.5 38
BL-S56A-15UY BL-S56B-15UY Ultra Yellow 590 2.1 2.5 38
BL-S56A-15Y BL-S56B-15Y Yellow 585 2.1 2.5 35
BL-S56A-15UG BL-S56B-15UG Ultra Green 574 2.2 2.5 45
BL-S56A-15G BL-S56B-15G Green 570 2.2 2.5 35
BL-S56A-15PG BL-S56B-15PG Ultra Pure Green 525 3.0 4.2 60
BL-S56A-15UB BL-S56B-15UB ultra Blue 470 3.0 4.2 70
BL-S56A-15B BL-S56B-15B ultra Blue 470 3.0 4.2 58
BL-S56A-15W BL-S56B-15W Ultra White / 2.7 4.2 65

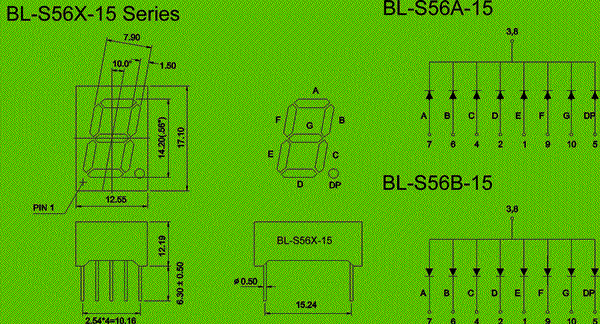

Package configuration & Internal circuit diagram
segment display | single digit | 0.56 inch Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter   S D UR E Y G Unit
Forward Current IF   25 25 25 25 25 30 mA
Power Dissipation Pd   60 60 60 60 60 65 mW
Reverse Voltage VR   5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ)   150 150 150 150 150 150 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL   Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
Absolute maximum ratings (Ta= 25°C)
Parameter UHR UE YO UY UG PG UB UW Unit
Forward Current IF 30 30 30 30 30 30 30 30 mA
Power Dissipation Pd 75 65 65 65 75 110 120 120 mW
Reverse Voltage VR 5 5 5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 100 100 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
