Product:0.56 inch single seven segment led display (include sign)
P/N:BL-S56A-14,BL-S56B-14
Dimension: 12.60x19.00mm
kindsSEVEN SEGMENT LED -> ALPHANUMERIC LED
Datasheet:PDF datasheet of BL-S56A-14,BL-S56B-14-7 segment LED | electronic components | 0.56" single digit

RoHs Compliance, Pb-free Anti-Static Attention


Feature:
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance

Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No Common Cathode Part No Common Anode Color Wave length (V) typ (V) Max Bright (mcd)
BL-S56A-14H BL-S56B-14H Red 700 2.25 2.6 3
BL-S56A-14D BL-S56B-14D Super Red 660 1.85 2.2 45
BL-S56A-14S BL-S56B-14S Hi Red 660 1.85 2.2 30
BL-S56A-14UR BL-S56B-14UR Ultra Red 660 1.85 2.2 50
BL-S56A-14E BL-S56B-14E Orange 635 2.1 2.5 35
BL-S56A-14UE BL-S56B-14UE Ultra Orange 630 2.1 2.5 38
BL-S56A-14UY BL-S56B-14UY Ultra Yellow 590 2.1 2.5 38
BL-S56A-14Y BL-S56B-14Y Yellow 585 2.1 2.5 35
BL-S56A-14UG BL-S56B-14UG Ultra Green 574 2.2 2.5 45
BL-S56A-14G BL-S56B-14G Green 570 2.2 2.5 35
BL-S56A-14PG BL-S56B-14PG Ultra Pure Green 525 3.0 4.2 60
BL-S56A-14UB BL-S56B-14UB ultra Blue 470 3.0 4.2 70
BL-S56A-14B BL-S56B-14B ultra Blue 470 3.0 4.2 58
BL-S56A-14W BL-S56B-14W Ultra White / 2.7 4.2 65

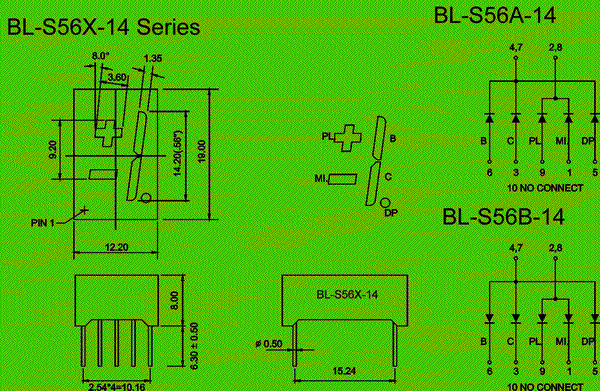

Package configuration & Internal circuit diagram
7 segment LED | electronic components | 0.56" single digit Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25°C)
Parameter   S D UR E Y G Unit
Forward Current IF   25 25 25 25 25 30 mA
Power Dissipation Pd   60 60 60 60 60 65 mW
Reverse Voltage VR   5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ)   150 150 150 150 150 150 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL   Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
Absolute maximum ratings (Ta= 25°C)
Parameter UHR UE YO UY UG PG UB UW Unit
Forward Current IF 30 30 30 30 30 30 30 30 mA
Power Dissipation Pd 75 65 65 65 75 110 120 120 mW
Reverse Voltage VR 5 5 5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 100 100 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C
