39mm llevó clúster juego (4 set, lleno de cuadrados)
BL-CS39AR2G1B1
39mm led cluster set | outdoor application
| Brand | BETLUX |
| Part NO | BL-CS39AR2G1B1 |
| Dimension | 39.00*39.00*40.80 mm |
| Weight | 54.0000g |
| Package | 2pcs/bag |
| Datasheet |  |
Feature:
Descripción
39mm conjunto de luces juego (4 set, lleno de cuadrados) 39mm
clúster LED conjunto
Características:
anchura * altura: 39.00mm * 39.00mm
de alta visibilidad
Emisión de color: Rojo Verde Azul
n de Piedra en 5 mm Lámparas LED: Viene con 4 juegos, cada juego incorporado 2pcs 1pcs rojo y verde y de alta visibilidad
paquete impermeable con capucha adecuados
Para el aire libre y cubierta paneles informativos
Larga Vida de baja corriente, de ahorro de energía
Baja Mantenimiento Diferentes colores disponibles
de estado sólido, de alta vibración />
RoHs
Electrical-optical characteristics:

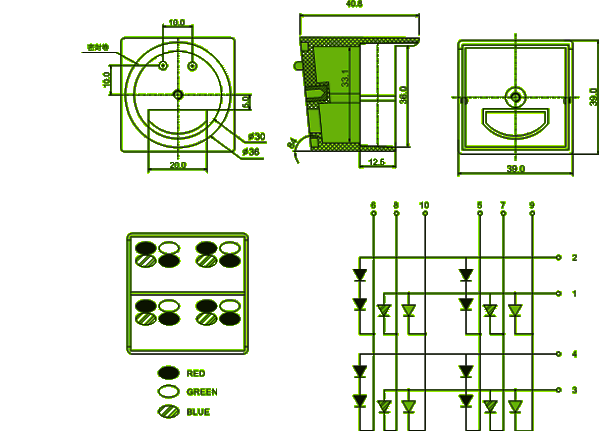

Package configuration & Internal circuit diagram
Tolerance is +-0.25(0.01") unless otherwise note
Specifications are subject to change without notice.
Absolute maximum ratings (Ta= 25?C)
Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)
| Characteristic | Symbol | Ultra Orang | Ultra Green | Ultra Blue | Unit |
| Spectral Line Half width | 17 | 30 | 30 | nm | |
| Pulse Forward Current | IFp | 150 | 150 | 150 | mA |
| DC Forward Current | IF | 30 | 30 | 30 | mA |
| Reverse Voltage | V R | 5 | 5 | 5 | V |
| Power Dissipature | PD | 65 | 75 | 75 | mW |
| Operating Temperature | Topr | -40 °C -80 °C | |||
| Storage Temperature | Tstg | -40 °C -85 °C | |||
| Lead Soldering Temperature | Max.260+5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ||||
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
