15mm llevó clúster (3 rojo 4 verde, redondo embalaje)
BL-CR15AR3G4
led cluster | 15mm round
| Brand | BETLUX |
| Part NO | BL-CR15AR3G4 |
| Dimension | 15.00*15.00*29.70 mm |
| Weight | 2.2000g |
| Package | 100pcs/bag |
| Datasheet |  |
Feature:
Descripción

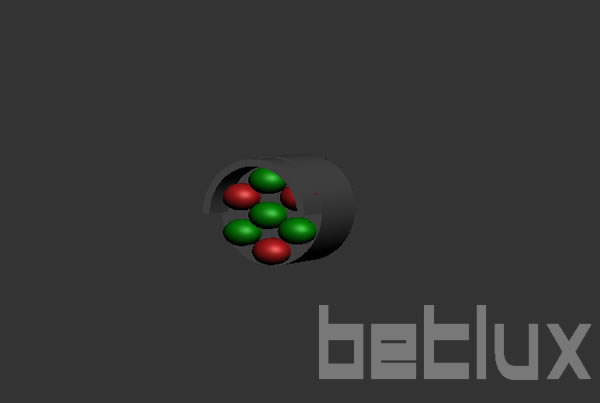

15mm clúster de la lámpara (3 rojo 4 verde, redondo relleno) de 15 mm
Forma: redondo
Diámetro: 15.00mm
n de Piedra en 5 mm Lámparas LED: Super 3pcs rojo brillante, verde 4pcs
Packag impermeable de alta visibilidad
paquete impermeable con capucha />
Larga Vida de baja corriente, de ahorro de energía
Baja Mantenimiento Diferentes colores disponibles
de estado sólido, de alta vibración />
Electrical-optical characteristics:

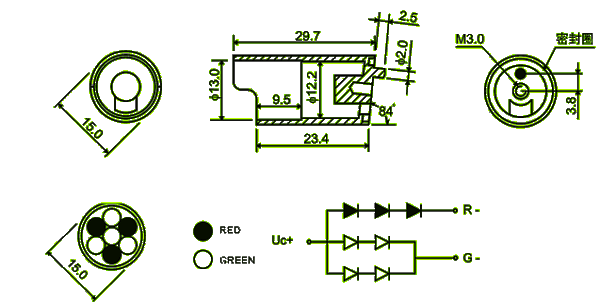

Package configuration & Internal circuit diagram
Tolerance is +-0.25(0.01") unless otherwise note
Specifications are subject to change without notice.
Absolute maximum ratings (Ta= 25?C)
Absolute Maximum Rating (Each LED diodes,Ta= 25°C Derate above 25°C)
| Characteristic | Symbol | Ultra Orang | Ultra Green | Ultra Blue | Unit |
| Spectral Line Half width | 17 | 30 | 30 | nm | |
| Pulse Forward Current | IFp | 150 | 150 | 150 | mA |
| DC Forward Current | IF | 30 | 30 | 30 | mA |
| Reverse Voltage | V R | 5 | 5 | 5 | V |
| Power Dissipature | PD | 65 | 75 | 75 | mW |
| Operating Temperature | Topr | -40 °C -80 °C | |||
| Storage Temperature | Tstg | -40 °C -85 °C | |||
| Lead Soldering Temperature | Max.260+5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | ||||
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
