LED Part No system
In order to server our customer better, we provide our part no system here. Checking with the files, you will easily get to know what the part no meaning

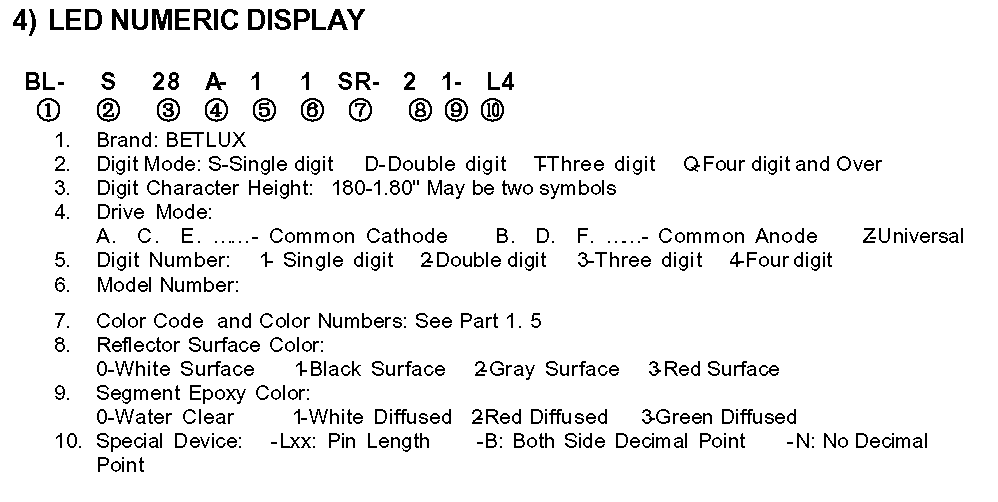

LED seven segment, called also LED numeric display, is widly applied in home appliance panel display and other application.

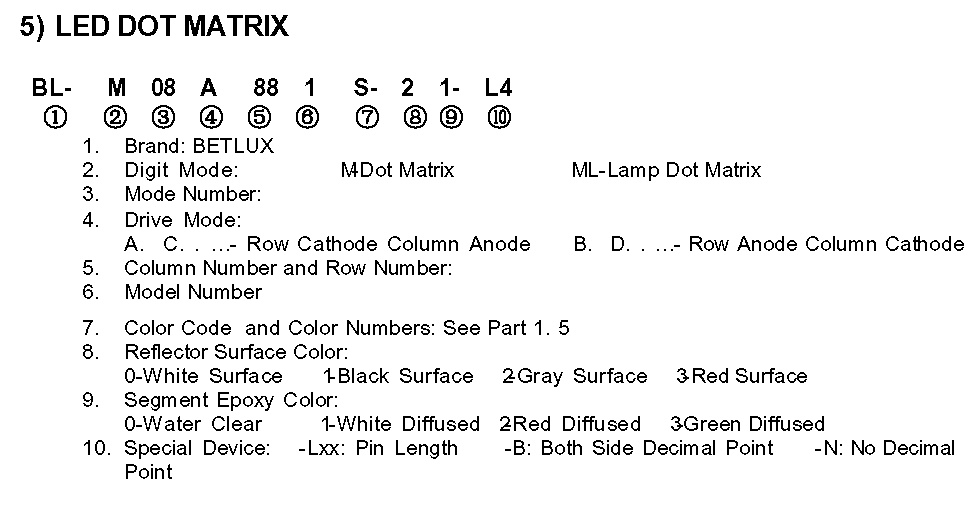

LED dot matrix is widly used in LED screen indoor and semi-outdoor

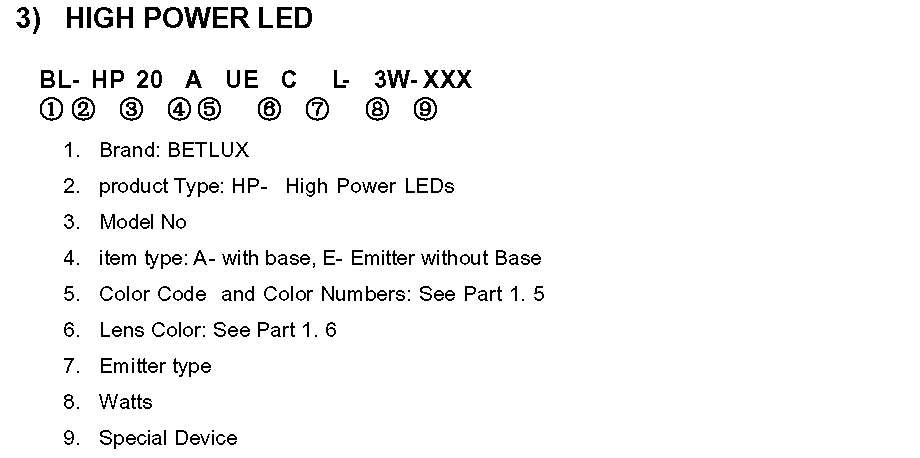

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval leds, ellipticall, flat top; SMDs, high power leds, prinhan LEDs
LED light is widely applied in instrument show box, elevator,etc

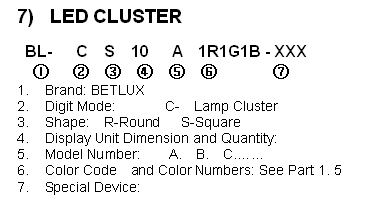

LED
cluster
is widely applied in traffic signal, scoreboard sign,etc
| EMITTING COLOR | MATERIAL | EMITTING COLOR | MATERIAL |
| H: Red | GaP/GaP 700nm | UG: High Bright Green | AlGaInP 574nm |
| S: High Bright Red | GaAlAs/GaAs SH 660nm | PG: Super Pure Green | AlGaInP 525nm |
| D: Super Bright Red | GaAlAs/GaAs DH 660nm | BG: Super Bluish Green | AlGaInP 505nm |
| UR: Ultra Bright Red | GaAlAs/GaAlAs DDH 660nm | B: Blue | GaN/SiC 430nm |
| UHR: Ultra Bright Red | AlGaInP 640nm | UB: Super Bright Blue | InGaN/SiC 470nm |
| E: Orange | GaAsP/GaP 635nm | V: UV | InGaN/SiC 405nm |
| UE: High Bright Orange | AlGaInP 630nm | W: White | |
| Y: Yellow | GaAsP/GaP 585nm | EG: Orange+Green Bi-color | |
| UY: High Bright Yellow | AlGaInP 590nm | SG: High Red+Green Bi-color | |
| G: Green | GaP/GaP 570nm | RGB: Multicolor |
For your easily check with our part no system, we also provide you the PDF version, please download it here
